THE ADVANTAGE — BARE ROLL

Bare Roll Corona Treater for Printing, Coating, and Laminating

The Advantage Bare Roll is QC’s production workhorse; engineered for 24/7 converting operations that demand consistent surface energy across every substrate, every shift, and every roll. Treats both conductive and nonconductive materials with closed-loop power stability and precision watt density control.

Get a Quote → contact us
136″Max Treat
Width
40KWMax
Power
24/7Continuous
Duty Rated
WIAmerican
Made

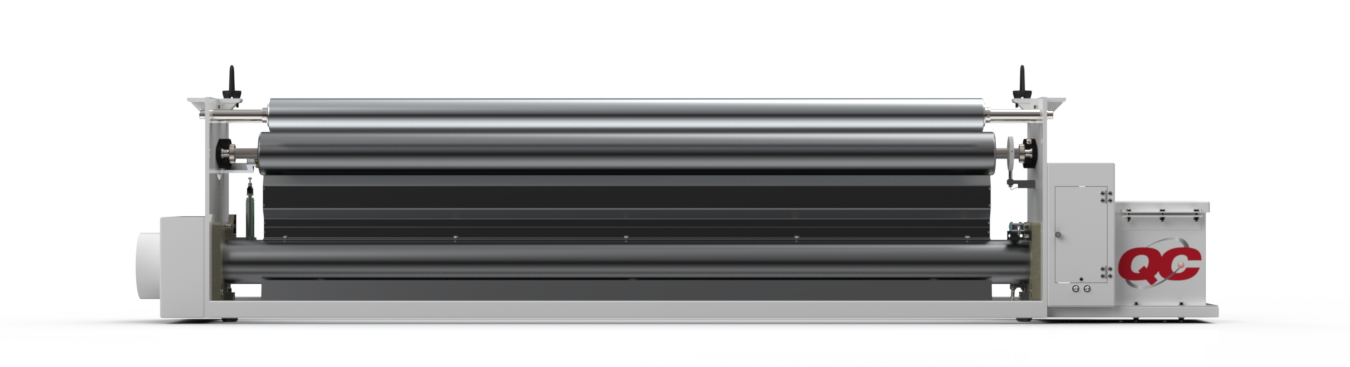

Bare roll corona treater by QC Electronics for corona treatment applications
PRODUCT OVERVIEW

The Advantage Bare Roll

The Advantage Bare Roll corona treater is built for production environments where uptime is everything. A precision-welded steel frame dampens vibration and maintains alignment. Counterweighted electrode assemblies protect your web and your electrodes from splices and imperfections. Closed-loop PID power control maintains stable watt density at any line speed.

The result is a corona treater that treats both conductive and nonconductive substrates—PE, PP, PET, nylon, foils, paper, and multilayer films—with the consistency your downstream process demands. It’s not uncommon for QC treaters to run 5+ years without a single electrode replacement.
Max Treat Width
136″
Power Range
800W–40KW
Substrates
Any
Control
Touch or Analog
WHAT MAKES IT DIFFERENT

Key Features

corona treater control cabinet
PRECISION POWER

Closed-Loop PID Power Control

Real-time voltage and current feedback regulate output in a true closed-loop PID system. The generator maintains stable watt density regardless of line speed changes, substrate variations, or environmental conditions. Store treatment recipes and recall them for fast job changeovers with operator lockout to prevent unauthorized adjustments between shifts.

WEB PROTECTION

Counterweighted Electrode Assemblies

Electrode assemblies are counterweighted to lift away from the web when splices, knots, or imperfections pass through the treatment station. This protects both the web and the ceramic electrodes from damage, reducing downtime and extending electrode life. Easy access for cleaning, maintenance, and electrode replacement.

bare roll corona treater
Corona Bars in QC Corona Treatment System
HIGH POWER DENSITY

Highest-Rated Ceramic Electrodes

QC’s electrodes deliver high-density corona discharge to a smaller, more targeted area. The corona field is homogeneous and smooth, providing consistent, thorough treatment across the full web width. Higher density discharge means higher dyne levels with cooler operation, longer electrode life, and a smaller footprint. Not uncommon for QC treaters to go 5+ years without electrode replacement.

BUILT TO LAST

Precision-Welded Steel Frame

A heavy-duty steel frame maximizes harmonic dampening and preserves alignment integrity over years of continuous operation. Stable web handling supports uniform discharge across the full treatment width. Every system is manufactured entirely in-house at our facility in Portage, Wisconsin: from welded frame to final assembly.

QC employee welding corona treater frame
touch panel of corona treater
INTELLIGENT AUTOMATION

Touch Panel Control

Line speed monitoring, frequency monitoring, auto/manual start, true kilowatt output, watt density control, kilowatt control, advanced digital fault log, spare parts list, and recipe programming with operator lockout. Fieldbus communication for integration with your line’s control system. Also available in analog control.

VERIFIED PERFORMANCE

Load-Tested Before Shipment

Every Advantage system is load-tested with material running through the station prior to shipment. Performance is verified under real operating conditions, not just bench-tested. When your treater arrives, it’s already proven.

corona treater for printing and labeling
TECHNICAL SPECIFICATIONS

Specifications

Specification
Detail
Max Treat Width
136″
Power Range
800W–40KW
Power Control
Closed-loop PID
Substrates
Conductive and nonconductive
Electrode Assembly
Counterweighted, swing-away
Control
Touch panel or analog
Duty Rating
Continuous 24/7
Line Speed Matching
Automatic proportional ramp
Integration
Fieldbus communication
Frame
Precision-welded heavy-duty steel
Origin
Portage, Wisconsin USA
OPTIONS & UPGRADES

Available Options

✓Touch panel control
✓Ceramic coated rolls
✓High voltage switching
✓Remote control panel
✓Skip treating
✓Adjustable air gap (auto or manual)
✓Fieldbus communication
✓Recipe programming with operator lockout
✓Idler rolls
✓Custom mechanical integration
✓Fully customizable to application
SUBSTRATE COMPATIBILITY

Materials You Can Treat

The Advantage Bare Roll treats both conductive and nonconductive substrates—the most versatile substrate range of any QC corona treater.

Material
Applications
Polyethylene (PE)
Flexible packaging, pouches, bags, shrink wrap. LDPE, LLDPE, HDPE.
Polypropylene (PP/BOPP)
Labels, flexible packaging, snack food packaging. OPP, BOPP, CPP.
Polyester (PET)
Barrier packaging, lidding, pouches, industrial films.
Nylon (PA)
High-performance barrier films, medical packaging, vacuum pouches.
Aluminum Foil
Lids, wraps, laminate structures. Conductive substrate—bare roll required.
Metallized Films
Metallized PET, metallized OPP. Conductive substrate—bare roll required.
Paper & Paperboard
Cartons, labels, wraps, kraft. Treated for water-based inks and coatings.
Coated & Extruded Films
Multi-layer laminate structures, extrusion-coated films, coated papers.
APPLICATIONS

Built for These Processes

The Advantage Bare Roll is QC’s most versatile production corona treater—used across flexographic printing, rotogravure, digital printing, coating, laminating, and extrusion coating operations worldwide.

EXPLORE MORE

Other Corona Treaters

QC Electronics TNT Covered Roll Corona Treater

TNT Covered Roll

Patented design for blown and cast film extrusion. High-efficiency treatment on nonconductive substrates.

QC Electronics Narrow Web Corona Treater

Narrow Web

Compact, high-power treater for flexographic and digital print & label presses. Drop-in installation.

QC Electronics NEXTGEN-i Generator

NEXTGEN-i Generator

Automatic watt density control with touchscreen interface. Powers every QC corona treater.

GET STARTED

Ready to Put the Advantage on Your Line?

Tell us about your converting line: substrate mix, line speed, treat width, and what you’re printing, coating, or laminating. Our engineers will configure a Bare Roll corona treater matched to your exact application.
